Surgical Video Recording Solution

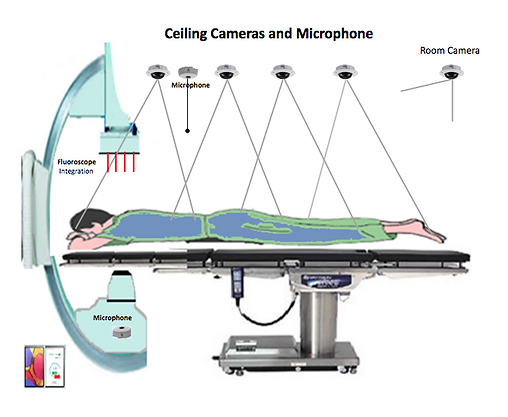

Procedure Room Design

Criteria & Differentiation

Non-Invasive Presence

Visually discreet, silent and no floor or overhead obstructions
No daily set-up, calibration, or process requirements
Completely secure with no network or cloud dependencies
Simple and intuitive tablet use interface
Always available, runs on-demand 24 x 7

Professional Grade – commercial grade cameras with advanced zoom, auto-focus, and high-definition resolution.

Comprehensive Automation – from camera positioning, multi-view display to recording, rendering, and distribution.

Non-Proprietary – open source software and off-the-shelf industry-standard hardware.

IT Friendly – you own the Windows-11 based hardware; thus, you can integrate any in-house software infrastructure bundle required for your operation.

Low Cost – The cost is based on a per recording usage. Only pay for what you use. Further, as your volume increases, volume discounts are applied, thus the cost per unit decreases.

Procedure Room Tablet (PRT)

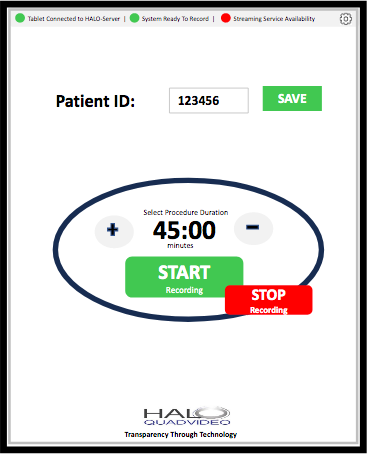

Intuitive Tablet User Interface

Simple Recording Process. Enter Patient-ID and Press Start to activate and the HALO system automatically captures, records and stores procedure videos.

Simple Camera View Positioning. You can select PRESET camera views or manually adjust each camera as required.

Intuitive System Status. Note the indicators along the top of the HOME page user interface. They display the status of the central processing system, network connectivity, battery charge, and current camera view position.

Procedure Room Display (PRD)

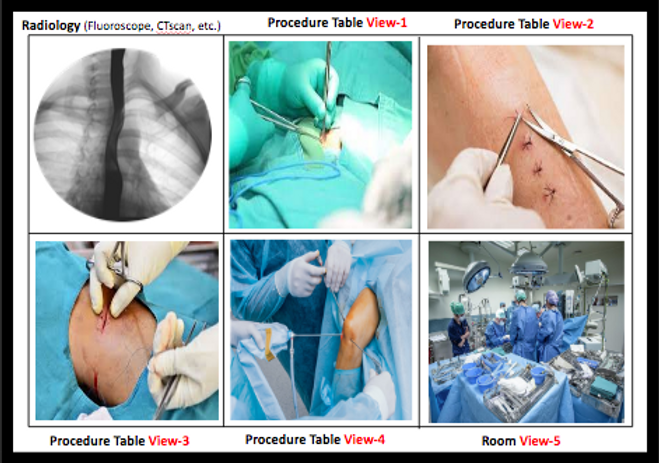

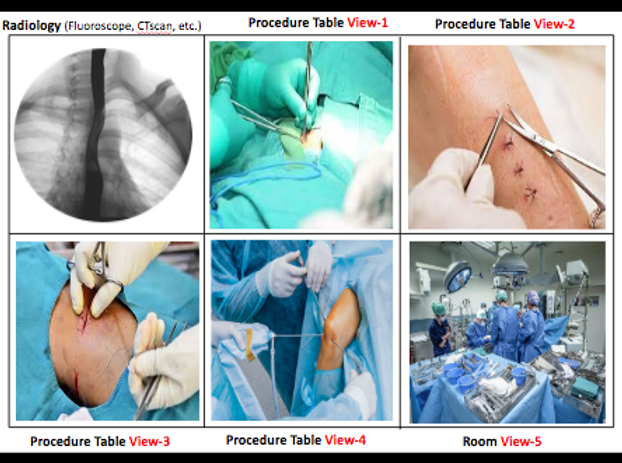

Consolidated Multi-View Display

Displays both camera and radiology image simultaneously
Auto- synchronizes all video, audio, and radiology feeds.
Sources: Flat screen HDMI-1 is displays the HALO multi-segment views. HDMI-2 displays the real time radiology image stream.
This same display can be streamed to authenticated remote viewers.

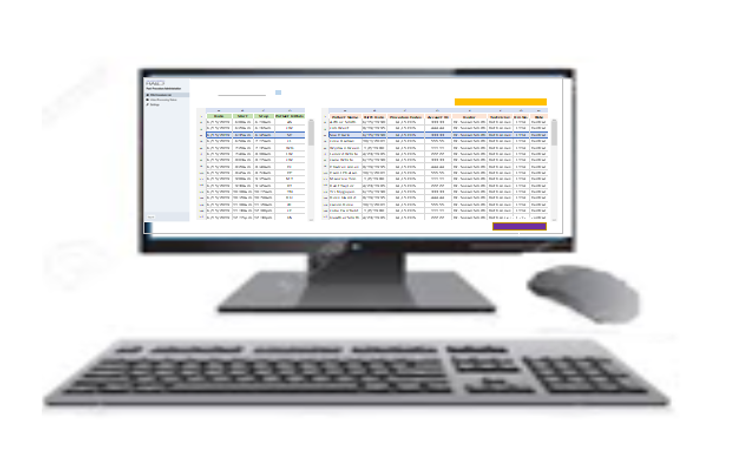

Post Procedure Administrator (PPA)

The PPA is a Google Chrome browser based APP that can be used by authorized local or remote healthcare administrators to:

Retrieve procedure schedule by day
Retrieve existing patient procedure videos
Create or edit video label into each video recording.
Render original videos into MP4 format with complete labeling.
Manage invitations and authentication of invited remote advisors.

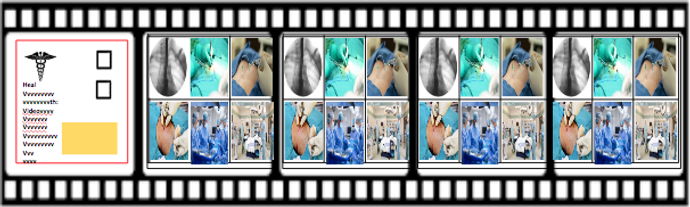

Final Video Output

The final video output is an the MP4 file with an inserted header label. MP4 is a universally recognized video file format that is ubiquitous and available on nearly any platform for viewing.

Because this is confidential patient data as defined by HIPAA, any post surgery viewing requires Confidential Agreements with all viewing parties.
